Capacity: 60-240t/h
Total Power: ≤700kw
Application: this plant mainly used in asphalt concrete produce, color asphalt mixture. it can satisfy the needs of road construction, airpot construction, sea port construction etc.

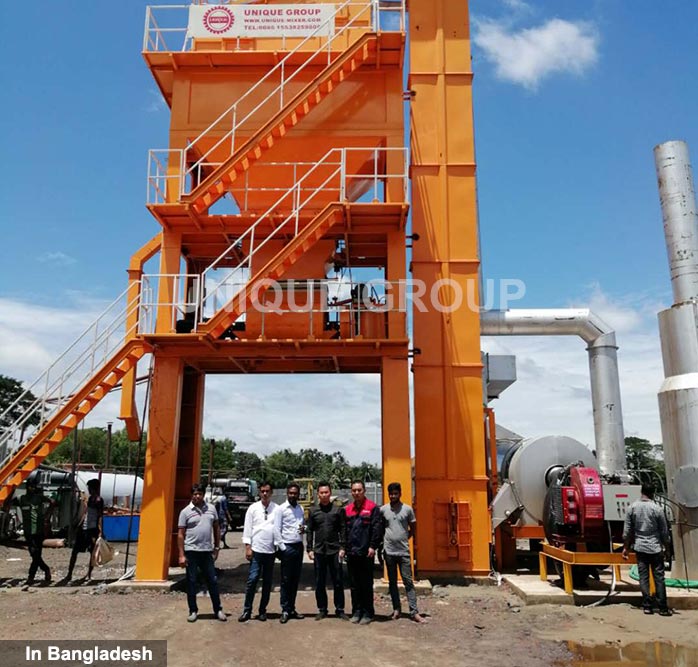

Asphalt Mixing Plant is designed as modular structure, which is convenient for transportation, installation and relocation. It takes smaller area and promotes higher production efficiency. It is suitable for mass production of road construction.
Features of Asphalt Mixing Plant:
1.Stable and reliable performance. Adopt European standards, specially designed by Chinese and foreign experts, mechanical and electrical supporting system all use of well-known brands to create high reliability and stability of the assured products for customers.
2.Modular design. The application of modular and fast installation system technology has made the transport and installation becomes more efficient and convenient. The perfect design not only improve the working efficiency, but also makes the operation easy, saving more energy.
3.Lifelong technical support. We provide guidelines on installation and operation, all the technical service go though pre-sale, during-sale and after sale.
|
Model |
LB700 |
LB1000 |
LB1200 |
LB1500 |
LB2000 |
LB2500 |
LB3000 |
|
Capacity(t/h) |
60 |
80 |
100 |
120 |
160 |
200 |
240 |
|
Mixer Capacity(kg/batch) |
750 |
1000 |
1200 |
1500 |
2000 |
2500 |
3000 |
|
Drum dryer(mm) |
dia.1200*5200 |
dia.1600*6800 |
dia.1800*8000 |
dia.1800*8000 |
dia.2200*8500 |
dia.2500*9000 |
dia.2800*9000 |
|
Dust collect effect |
≤20 mg/Nm3 |
≤20 mg/Nm3 |
≤20 mg/Nm3 |
≤20 mg/Nm3 |
≤20 mg/Nm3 |
≤20 mg/Nm3 |
≤20 mg/Nm3 |
|
Total Power(kw) |
178 |
285 |
316 |
380 |
470 |
547 |
700 |
|
Fuel Consumption (Oil) |
5.5-7 kg/t |
5.5-7 kg/t |
5.5-7 kg/t |
5.5-7 kg/t |
5.5-7 kg/t |
5.5-7 kg/t |
5.5-7 kg/t |
|
Fuel Consumption (Coal) |
10kg/t |
10kg/t |
10kg/t |
10kg/t |
10kg/t |
10kg/t |
10kg/t |
|
Weigh Exact |
aggregate:±0.5% powder:±0.5% bitumen:±0.25% |
||||||
|
Plant Covering Area (L*W*H)(m) |
35*30*17 |
35*32*17 |
40*30*17 |
40*30*17 |
45*32*17 |
48*35*17 |
60*45*17 |
