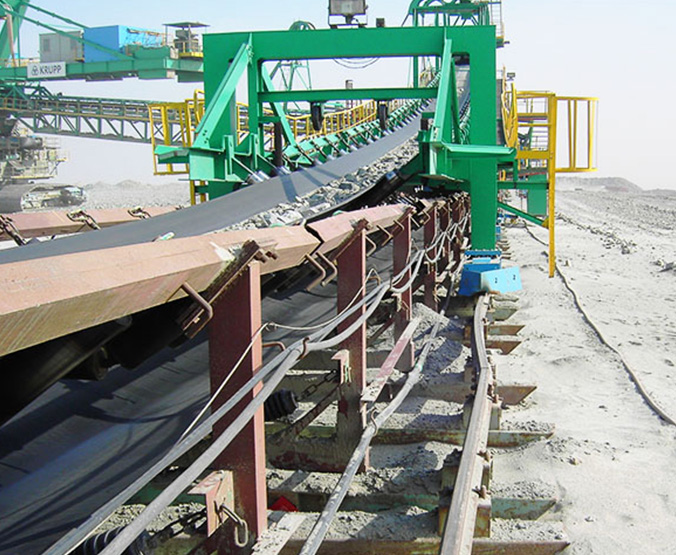

Mining Belt Conveyor

Mining belt conveyors are designed especially for where anti-explosion, flame retardation and antistatic materials are required. Usually used for mining and quarry site, such as stone crusher plant, coal conveyor, aggregate conveyor, stone conveyor, sand conveyor, gravel conveyor, mining handling conveyor system etc.

Inquiry Now Send E-mail

Product Description:

Mining belt conveyors/mining material handling conveyor system are designed especially for where anti-explosion, flame retardation and antistatic materials are required. These conveyors have all of the same advantages of the standard belt conveyors, and also take up a smaller space and are easy to dismantle and move. Usually used for stone crusher plant, coal belt conveyor, aggregate belt conveyor, rock belt conveyor, gravel belt conveyor, ore belt conveyor and mining material handling conveyor system.

Parameter:

Model	capacity(t/h)	width(mm)	speed(m/s)	length(mm)	Pulley diameter	Roller diameter
DSJ65/20/2X30	200	650	1.63	600	450	89
DSJ65/20/2X37	200	650	1.63	800	450	89
DSJ65/10/40	100	650	2	600	500	89
DSJ65/20/2X40	200	650	2	800	500	89
DSJ65/20/2X55	200	650	2	1200	500	89
DSJ80/30/2X30	300	800	1.63	500	450	89
DSJ80/40/40	400	800	2	250	500	89
DSJ80/40/2X40	400	800	2	500	500	89
DSJ80/40/2X40P	400	800	2	500	500	89
DSJ80/40/2X55	400	800	2	700	500	89
DSJ80/50/2X75	500	800	2	800	630	89
DSJ80/40/2X90	400	800	2	1200	630	89
DSJ80/402X110	400	800	2	1400	630	89
DSJ100/63/2X75	630	1000	2	650	630	108
DSJ100/63/125	630	1000	2	500	630	108
DSJ100/80/2X125	800	1000	2	900	630	108
DSJ100/80/2X132	800	1000	2	900	1000	108
DSJ100/80/2X160	800	1000	3.15	1100	1000	133
DSJ100/80/2X200	800	1000	3.15	1300	1000	133
DSJ100/80/2X250	800	1000	3.15	1700	1000	133
DSJ100/80/2X315	800	1000	3.15	2100	1000	133
DSJ120/100/2X75	1000	1200	2	600	630	108
DSJ120/180/2X200	1800	1200	3.3	650	1080	133
DSJ120/200/3X250	2000	1200	3.3	1100	1080	133
DSJ120/150/2X315	1500	1200	3.3	1200	1080	133

packaging & shipping:

Company Information:

Started in 1980s, Zhengzhou Unique Industrial Equipment Co., Ltd (Unique Group) is already a famous manufacturer & developer of mining and concrete construction equipments like stone crushing equipment and concrete mixing equipment in China. Our products scope mainly includes stone crusher, stone crusher plant, mobile crusher plant, belt conveyor, stationary & mobile stone crushing plant, concrete mixer plant, concrete mixer, asphalt mixing plant, concrete mold etc. We not only offer clients the products with good capability & competitive price, but also provide top service & solutions.
