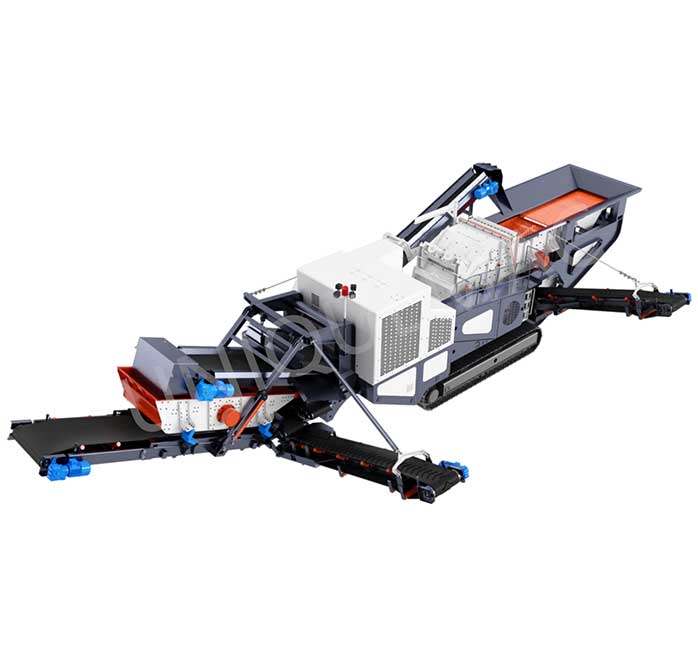

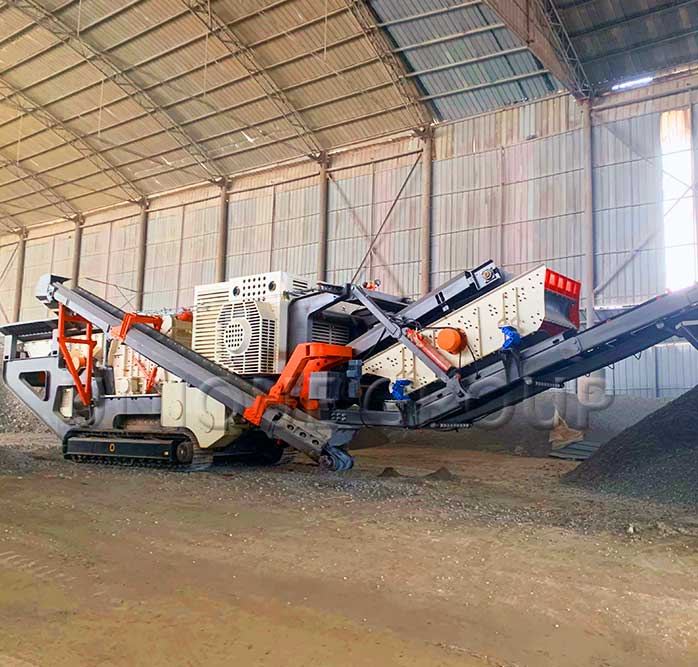

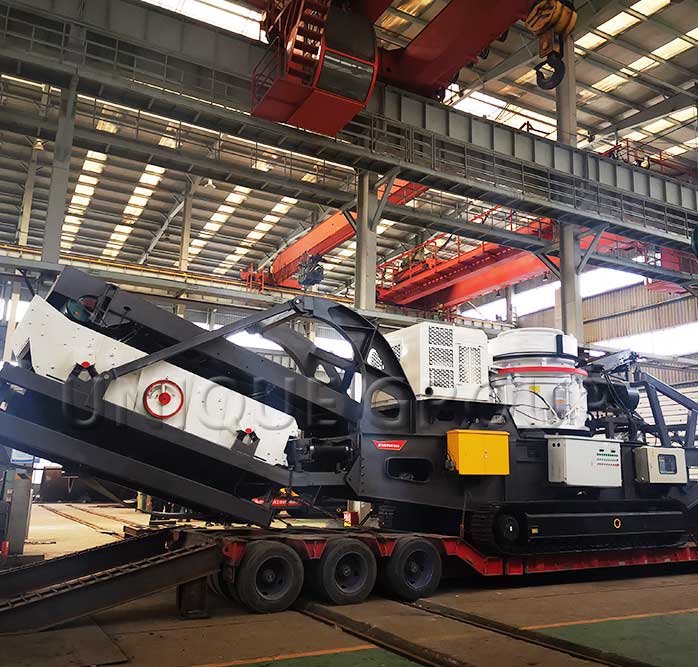

Portable/Mobile crusher plant is designed based on the conception of fully adapting various crushing condition, eliminating obstacles caused by location, environment,foundation configuration, consequently providing simple, efficient, low-cost crushing equipment.
Portable/Mobile crusher plant is designed based on the conception of fully adapting various crushing condition, eliminating obstacles caused by location, environment,foundation configuration, consequently providing simple, efficient, low-cost crushing equipment.
Built with high quality jaw crusher, cone crusher and impact crusher
Feeder, screen and belt conveyor on board
Tractive steering shaft, convenient for road transportation
Integrated with landing gears, quick and convenient installation on site
Integrated motor and control panel
| Model | YMC80 | YMC96 | YMC106 | YMC116 | YMC120 | |
| Feeder | Model | GZD8035 | GZD9638 | GZD1142 | GZD1142 | GZD1242 |
| Feeding Capacity | 60-120t/h | 100-200t/h | 200-300t/h | 200-300t/h | 300-400t/h | |
| Feeding Height | 2900mm | 3750mm | 3900mm | 3900mm | 3900mm | |
| Volume | 2.2m³ | 3.2m³ | 3.2m³ | 3.2m³ | 3.2m³ | |
| Power | 2×3.7Kw | 2×5.5Kw | 2×5.5Kw | 2×5.5Kw | 2×7.5Kw | |
| Jaw Crusher | Model | C80 | C96 | C106 | C116 | C120 |
| Power | 75Kw | 90Kw | 110Kw | 132Kw | 160Kw | |
| Discharge Adjustment | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Main Discharge Belt | Size(Width x Length) | 800×9000mm | 1000×12000mm | 1000×12000mm | 1200×13000mm | 1200×13000mm |
| Unloading Height | 2400mm | 2900mm | 2900mm | 3200mm | 3200mm | |
| Power | 7.5Kw | 11Kw | 11Kw | 15Kw | 15Kw | |
| Side Discharge Belt | Size(Width x Length) | 500×3800mm | 500×3800mm | 500×3800mm | 500×3800mm | 500×3800mm |
| Unloading Height | 1800mm | 1800mm | 1800mm | 1800mm | 1800mm | |
| Power | 3Kw | 3Kw | 3Kw | 3Kw | 3Kw | |
| Iron Remover | Model | RCYD800 | RCYD1000 | RCYD1000 | RCYD1200 | RCYD1200 |
| Generator | Primary Power | 163Kw | 225Kw | 310Kw | 310Kw | 403Kw |
| Standby Power | 180Kw | 250Kw | 345Kw | 345Kw | 448Kw | |
| Structure | 6-Cylinder Inline | 6-Cylinder V-shape | 6-Cylinder V-shape | 6-Cylinder V-shape | 8-Cylinder V-shape | |
| Generator | Primary Power | 150Kw | 200Kw | 280Kw | 280Kw | 360Kw |
| Standby Power | 165Kw | 220Kw | 300Kw | 300Kw | 390Kw | |
| Dual Power | Driving Concept | Diesel-electric Drive | Diesel-electric Drive | Diesel-electric Drive | Diesel-electric Drive | Diesel-electric Drive |
| Transport Parameters | Transport Length | 12500mm | 14500mm | 15000mm | 15000mm | 15500mm |
| Transport Width | 2850mm | 2950mm | 3000mm | 3200mm | 3200mm | |
| Transport Height | 3550mm | 3550mm | 3600mm | 3600mm | 3700mm | |
| Installed Power | 78.1Kw+70Kw | 121Kw+70Kw | 163Kw+90Kw | 168Kw+115Kw | 200Kw+115Kw | |
| Complete Dry Fog Dust Suppression | Optional | Optional | Optional | Optional | Optional | |
| Capacity | 80-125t/h | 100-250t/h | 160-360t/h | 200-450t/h | 300-520t/h | |
