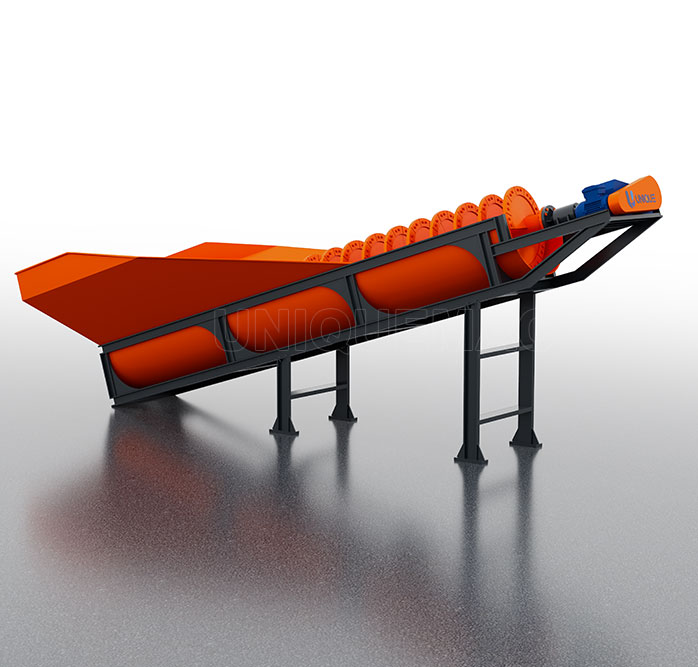

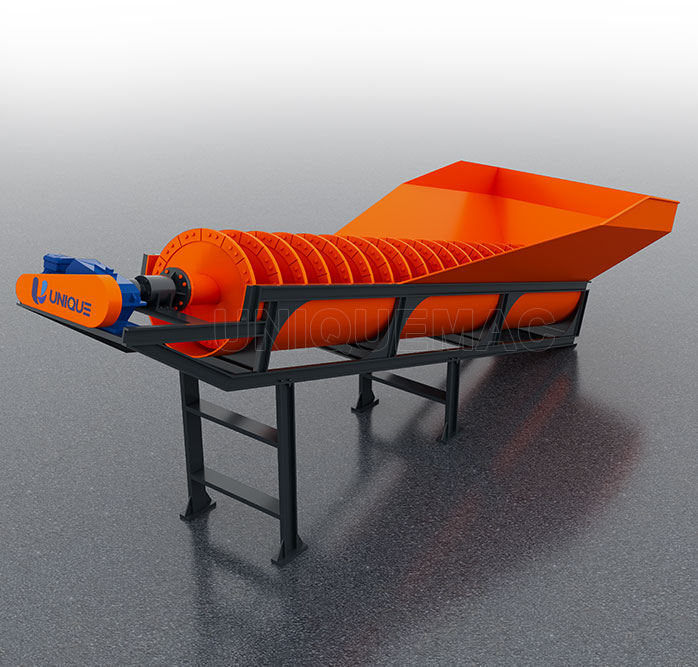

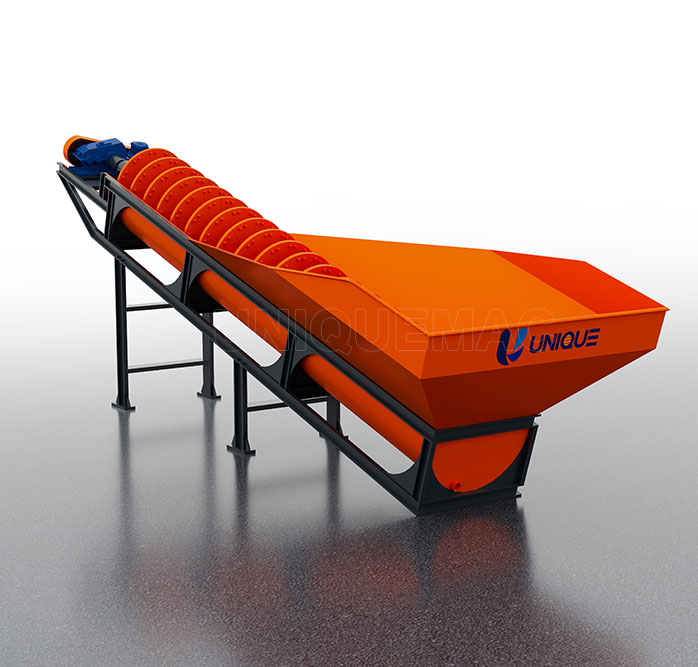

Spiral sand washer can be used to clean sand, gravel, or for grading equipment. It is widely used in cleaning the materials containing a large quantity of mud obvious. It's a good seal structure, fully enclosed gear, efficient, durable, good dehydration effect, the power consumption is small, fine products remain stable.
Spiral sand washer can be used to clean sand, gravel, or for grading equipment. It is widely used in cleaning the materials containing a large quantity of mud obvious. It's a good seal structure, fully enclosed gear, efficient, durable, good dehydration effect, the power consumption is small, fine products remain stable.
Its seal structure, the use of closed transmission device, has high efficiency, durable, dehydration effect is good, small power consumption, and fine particle characteristics of products remain stable.
High capacity
Heavy duty conveying paddles
Fabricated with heavy duty tubs
Oversize bearings and gears
Thick-walled shafts
Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox
The compound drive divides the operating load over an optimal combination of oversized helical and spur gears
Continuous grinding and abrading log washer paddles
Adjustable water discharge gates on both sides of lower end of the tub
|
Model |
XL508 |
XL610 |
XL762 |
XL915 |
2XL915 |
XL1115 |
2XL1115 |
|
Screw Diameter(mm) |
508 |
610 |
762 |
915 |
915 |
1115 |
1115 |
|
Length of Tub (mm) |
6705 |
7225 |
7620 |
7585 |
7585 |
9782 |
9782 |
|
Max Feed Size (mm) |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
|
Capacity (t/h) |
20 |
40-50 |
50-75 |
100 |
200 |
175 |
350 |
|
Speed Of Screw (r/min) |
38 |
32 |
26 |
21 |
21 |
17 |
17 |
|
Motor Power (kw) |
5.5 |
7.5 |
11 |
11 |
2×11 |
15 |
2×15 |
|
Water Consumption (t/h) |
6-60 |
6-63 |
9-63 |
10-80 |
20-160 |
20-150 |
40-300 |
|
Overall Dimensions(L×W×H)(mm) |
8000×2343 |
8000×2050 |
8545×2650 |
8500×2810 |
8420×3765 |
10970×3945 |
10970×5250 |
|
Weight (t) |
2.67 |
3.80 |
5.23 |
6.27 |
11.11 |
10.18 |
17.94 |
