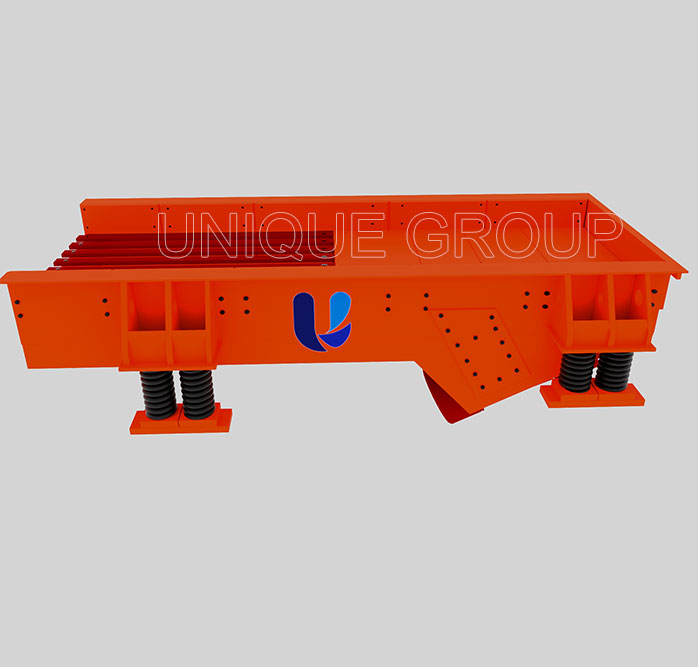

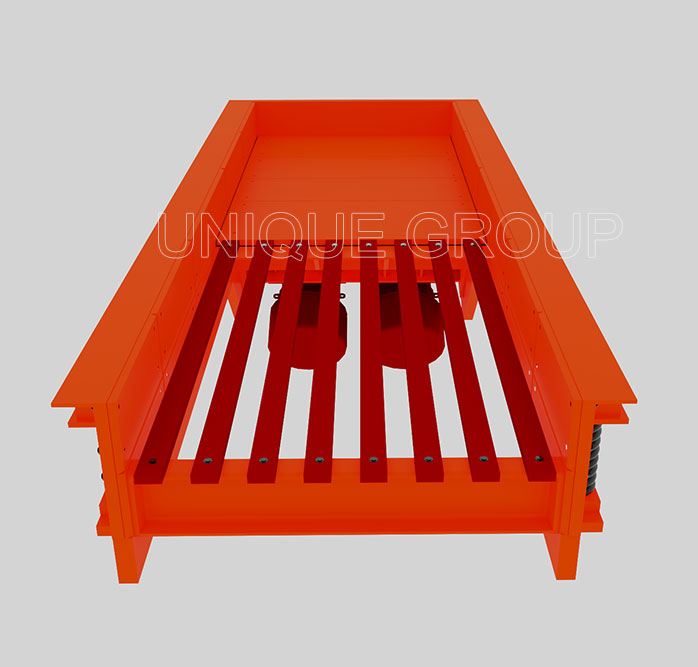

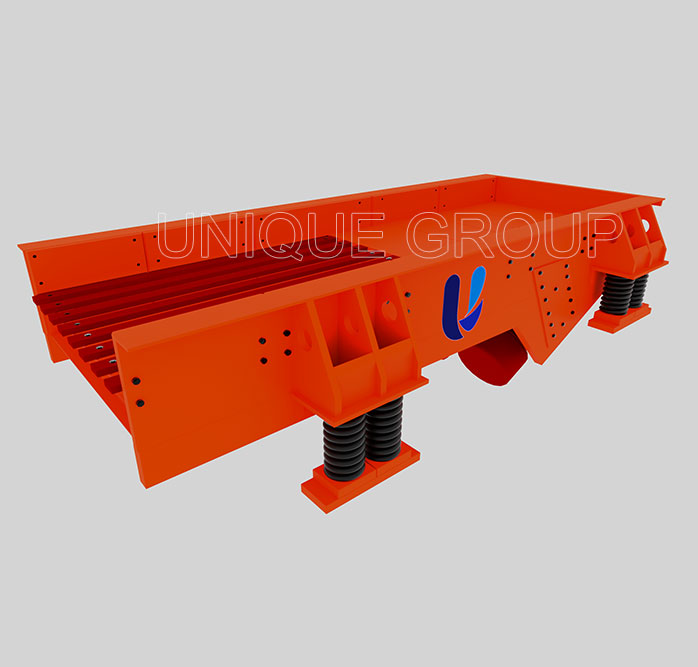

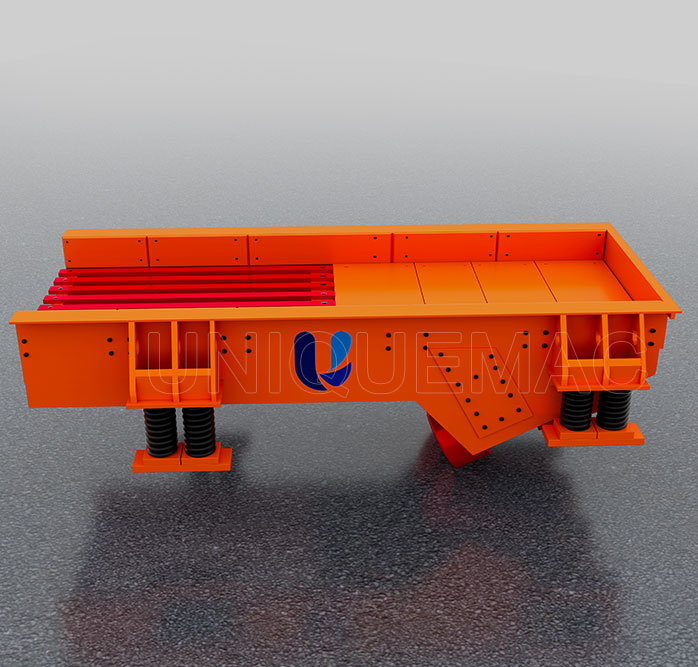

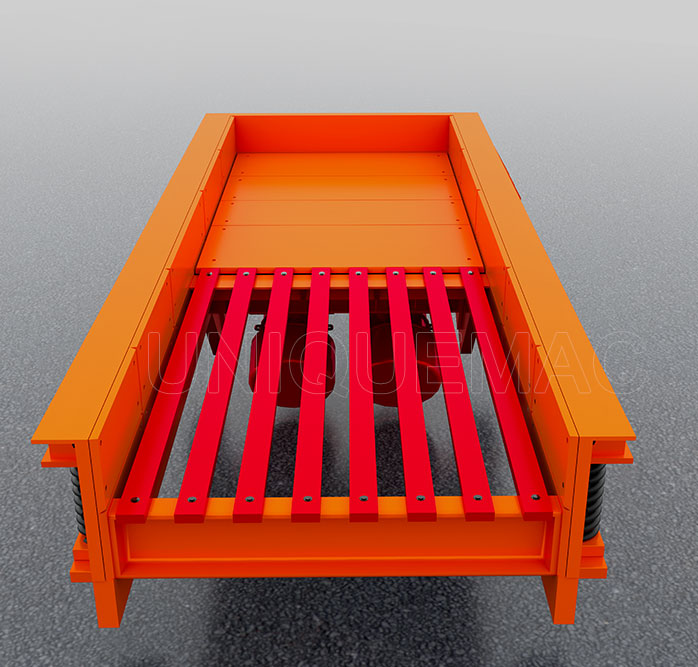

Vibrating Feeder is a kind of linear direction feeding equipment. It can send shaped and granule materials into crusher evenly, timely and continuously as well as screen the materials roughly. The vibrating feeder is widely used in crushing and sieving production line such as metallurgy, building material, chemical industry, coal, mining and grinding industry.
Vibrating Feeder is a kind of linear direction feeding equipment. It can send shaped and granule materials into crusher evenly, timely and continuously as well as screen the materials roughly. The vibrating feeder is widely used in crushing and sieving production line such as metallurgy, building material, chemical industry, coal, mining and grinding industry.
Smoothly vibrating and long service life
Vibrating force adjustable, easy to operation.
Low noise and power consumption
Simple structure, easy to maintenance.

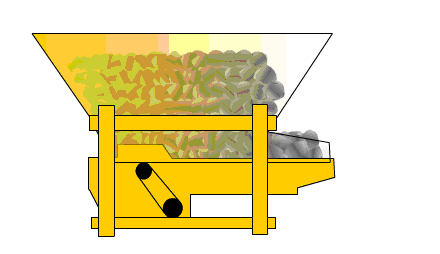

Vibrating feeder is made of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator consists two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. By drive of the motor, the two eccentric shafts start rotating to generate a linear huge power which forces the feeder to vibrate back and forth. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller material will fall down, avoiding the further crushing, so screening purpose is reached.
|
Model |
Capacity(t/h) |
Feed size(mm) |
Power(kw) |
|
|
Horizontal |
-10° |
|||
|
GZG40-4 |
30 |
40 |
100 |
2x0.25 |
|
GZG50-4 |
60 |
85 |
150 |
2x0.25 |
|
GZG63-4 |
110 |
150 |
200 |
2x0.50 |
|
GZG70-4 |
120 |
170 |
200 |
2x0.50 |
|
GZG80-4 |
160 |
230 |
250 |
2x0.75 |
|
GZG90-4 |
180 |
250 |
250 |
2x0.75 |
|
GZG100-4 |
270 |
380 |
300 |
2x1.5 |
|
GZG110-4 |
300 |
420 |
300 |
2x1.5 |
|
GZG140-4 |
400 |
470 |
300 |
2x2.2 |
|
GZG180-4 |
450 |
520 |
300 |
2x2.2 |
|
Model |
Max. feed size(mm) |
Capacity(t/h) |
Revolution speed of eccentric shaft(r/mm) |
Power(kw) |
Assemble angle(°) |
Weight(kg) |
Feed chute size(mm) |
Dimension(mm) |
|
ZSW-380x95Ⅱ |
500 |
96-160 |
500-714 |
11 |
0 |
4082 |
3800x900 |
3882x2177x2066 |
|
ZSW-420x110 |
580 |
120-240 |
500-800 |
15 |
0 |
4740 |
4200x1100 |
4282x2400x2150 |
|
ZSW-490x96 |
500 |
120-240 |
500-800 |
15 |
0 |
5351 |
4900x960 |
4957x2277x2150 |
|
ZSW-490x110Ⅱ |
630 |
120-280 |
500-800 |
15 |
0 |
5352 |
4900x1100 |
4950x2425x2031 |
|
ZSW-590x110 |
630 |
350 |
750 |
22 |
0 |
6130 |
5900x1100 |
6000x2500x2150 |
|
ZSW-600x130 |
750 |
400-560 |
500-800 |
22 |
0 |
7800 |
6000x1300 |
6082x2580x2083 |
|
ZSW-600x150 |
800 |
460-575 |
500-800 |
30 |
0 |
8666 |
6000x1500 |
6086x2662x1912 |
|
ZSW-600x180 |
800 |
600-800 |
500-800 |
37 |
0 |
11800 |
6000x1800 |
6310x3262x2230
|
|
Model |
Max. feed size(mm) |
Capacity(t/h) |
Power(kw) |
Obliquity of bar(°) |
|
GZT-0724 |
450 |
30-80 |
2x1.5 |
10 |
|
GZT-0932 |
560 |
80-150 |
2x2.4 |
10 |
|
GZT-0940 |
560 |
80-180 |
2x3.2 |
10 |
|
GZT-1148 |
600 |
150-300 |
2x5.5 |
10 |
|
GZT-1256 |
800 |
180-400 |
2x7.5 |
10 |
|
GZT-1560 |
1000 |
400-600 |
2x13 |
10 |
